Experimental Apparatus for the Study of Domestic Water Supply Systems

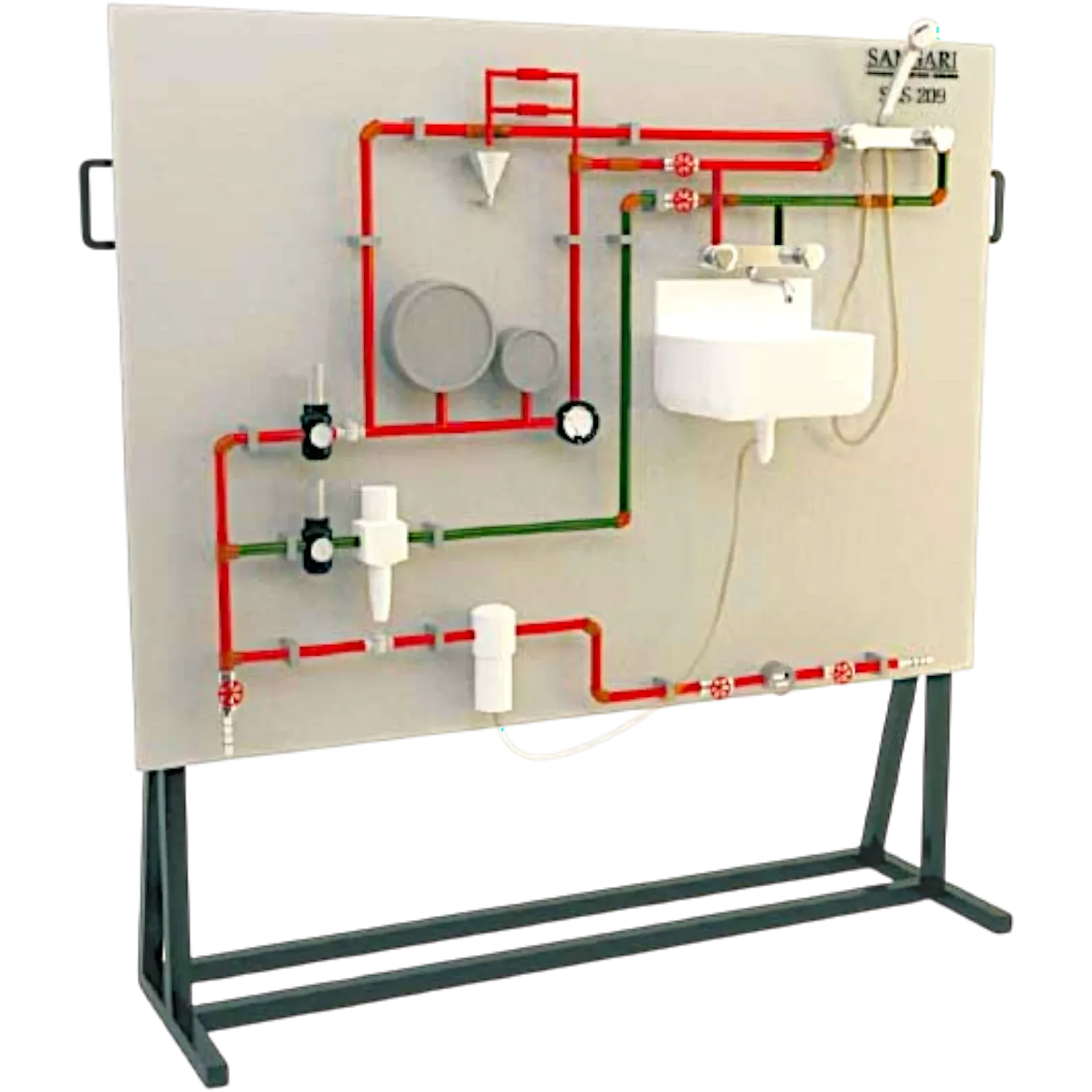

The educational apparatus enables the study of plumbing installations. Mounted on the training panel is a potable water installation representative of a conventional domestic system, incorporating a boiler and circulation pipes for the demonstration of domestic hot water production from the cold water network. The apparatus is equipped with safety systems illustrating how the potable water network is protected against backflow contamination from waste water.
